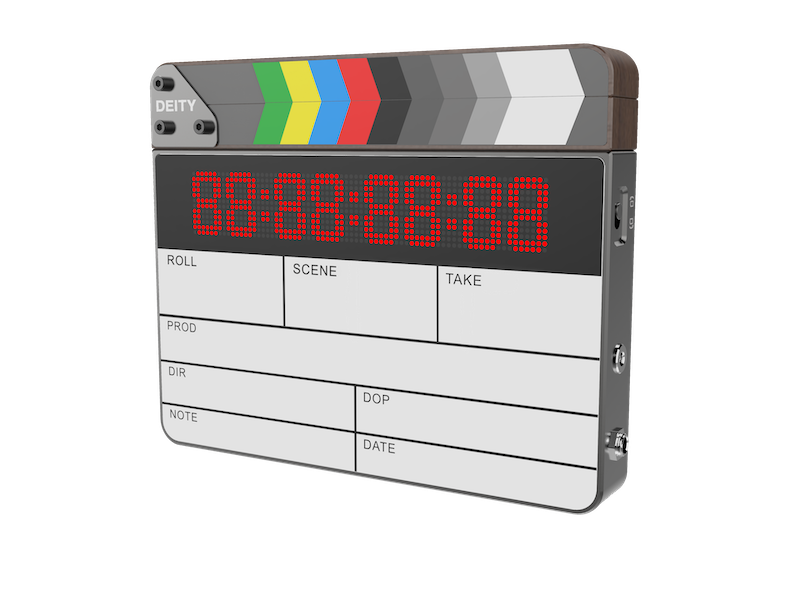

Deity TC-SL1 Wireless Timecode Smart Slate
The Deity TC-SL1 Smart Slate is a wireless timecode slate that combines a timecode generator with a dry-erase surface, a traditional clapper, and an LED dot-matrix timecode display. Being backlit and protected from glare, this slate can be used for day or night shoots without fear of reflections or extra lights.
Frequently Asked Questions
What are the circulation limits for this equipment?
This equipment has the following limits for circulation and usage:
| Description | Circulation Limits |
|---|---|
| Minimum Length of Reservation/Checkout | 30 Minutes (Standard) |
| Maximum Length of Reservation/Checkout | 7 Days (Standard) |
What comes in this kit?
- Deity TC-SL1 Wireless Timecode Smart Slate (Main kit item)
- Slate Marker
- 2x Deity NP-F550 Battery
- 0.5mm TRS to Right-Angle 5-Pin LEMO Timecode Cable
- USB-C to A Charging Cable
- Carrying Case
What are the full technical specifications?
General
| Timecode | SMPTE |
| Front Screen | LED Dot Matrix |
| Rear Screen | 1" OLED |
| Wireless Type | 2.4G RF Sync Pulse
Bluetooth 5.1LE |
| Wireless Range | ≤ 30ft - 2.4G RF
≤ 250ft - BT 5.1LE |
| RF Wireless Channels | 8 |
| Timecode Accuracy | ±0.5 ppm |
| Drift | < 1 Frame/48Hrs |
| Frame Rates | 23.98, 24, 25, 29,97, 29.97DF, 30 |
| Timecode Ports | 5-Pin Input/Output
1/4" TRS Output |
| Battery Life | Up to 100Hrs |
| Battery Type | NP-F550 |
| Battery Capacity | 6700mAh |
| Charging Port | USB-C |
| Charging Time | <3Hrs (15V 2A Charger) |
| Slate Dimensions | 9.1” x 7.3” x 1.6” |
| Weight | 2.5lbs |
Where can I find further support?
Visit the Deity manufacturer website.
Disclaimer: Manufacturer support pages may list alternate accessories.
Visit our Manufacturer Support page for further assistance.
The Deity TC-SL1 Smart Slate is a wireless timecode slate that combines a timecode generator with a dry-erase surface, a traditional clapper, and an LED dot-matrix timecode display. Being backlit and protected from glare, this slate can be used for day or night shoots without fear of reflections or extra lights.
