Teenage Engineering OP-1

Audio Mixers & Instruments - Teenage Engineering OP-1

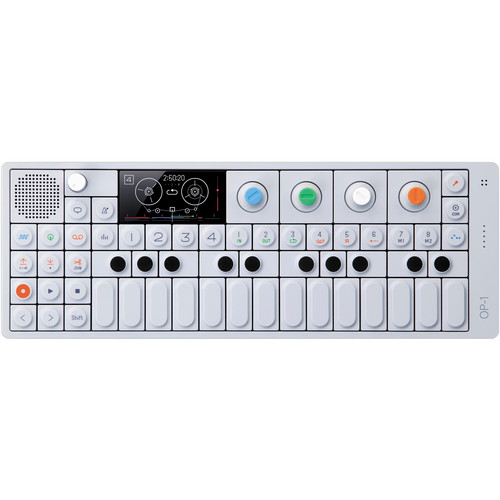

Teenage Engineering OP-1

Overview

OP-1 is an all-in-one synthesizer, sampler and MIDI controller. With additional features like a built-in FM radio, microphone, and an assignable G-force sensor for motion controlled effects, it is a great tool for exploring and recording musical ideas anytime and anywhere.

Feature Highlights

Primary Features:

  • Synthesizer, Sampler & Controller
  • 8 Built-In Engines
  • Real-Time Control Modulation
  • ADSR Type Envelope
  • 4-Channel Mixer

Additional Features:

  • 4-Track Tape Recorder
  • 3-Axis G-Force Sensor
  • Color Coded Interface
  • AMOLED Display
  • 16-Hour Battery Life

Frequently Asked Questions

What are the circulation limits for this equipment?

This equipment has the following limits for circulation and usage:

DescriptionCirculation Limits
Minimum Length of Reservation/Checkout 30 Minutes (Standard)
Maximum Length of Reservation/Checkout 7 Days (Standard)

What comes in this kit?

  • Teenage Engineering OP-1 (Main kit item)

  • USB A to Mini-B

  • Soft Case

What are the full technical specifications?

Input / Output
USB 2.0 high-speed (OTG)
Line In/Out 3.5 mm jack
Microphone Built-in
Speaker Mini: High output, 8 Ω, 1 W
Motion Sensor 3-axis accelerometer (G-force)
Assignable to any synth, envelope, effect parameter, or to pitch
Radio FM Band Support: Worldwide (64 to 108 MHz)
Display
Type Amoled display running in 60 fps
Resolution 320 x 160p
Color Depth 16.7 million
Contrast 10,000:1 (good for outdoor use)
Viewing Angle 170°
Lifetime 30,000 hours
Mechanical
Design Low-profile keyboard module
Scissor-switch ultra low profile design
Expected lifespan of 10 million keystrokes per key
Encoder
Type Industrial-grade incremental encoders
Life Rotational:
Up to 1,000,000 revolutions
Good indexing feel (remains consistent over life)
Material Zinc die-cast and fiber enforced high performance plastic (used in Avionics)
Battery
Battery Type Li-ion 1,800 mAh
Battery Life 16 hours (active)
2 years stand-by time
Charging Via USB port
General
CPU 400 MHz core processor (800 MMACSS performance)
64 MB low-power SDRAM (12ns)
512 MB NAND flash storage
24-bit 96 kHz ADC/DAC
Body Advanced CNC 1-piece aluminum design
2 x M6 Mounting holes for accessories
2 x Cuts for strap accessory
Operating Temperature Range -40 to 185°F (-40 to 85°C)
Dimensions (LxHxD) 11.1 x 4.0 x 0.5" (282.0 x 102.0 x 13.5 mm)

Where can I find further support?

Visit the Teenage Engineering manufacturer website.

Disclaimer: Manufacturer support pages may list alternate accessories.

Visit our Manufacturer Support page for further assistance.
